Description

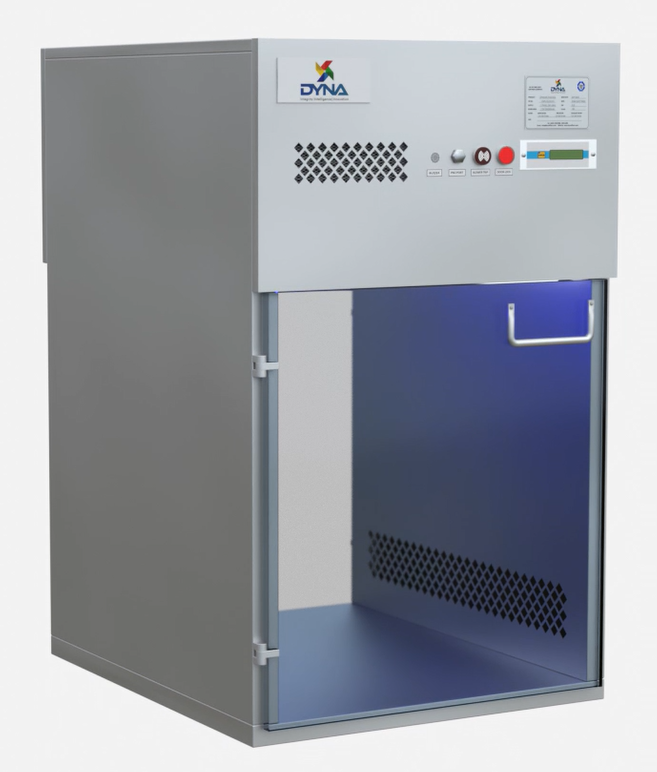

GMP-Grade Dynamic Pass Box with HEPA Filtration for Cleanroom Applications Preventing cross-contamination during material transfers is essential in cleanroom settings. The purpose of Dyna's Dynamic Pass Box is to enable the safe, contamination-free passage of items between rooms with varying degrees of cleanliness. This pass box, which has air circulation and HEPA filtration, guarantees that the air inside the transfer chamber is constantly pure and particle-free. The Dynamic Pass Box provides a dependable solution for preserving GMP compliance and ISO Class 5 air cleanliness within the transfer space. It is widely used in pharmaceuticals, biotechnology, hospitals, semiconductors, consumer electronics, and food production facilities. Dynamic Pass Box Key Features: Class 100 work area As per ISO 14644 standards. GMP-Compliant SS 304/316 Construction – Durable and easy to sanitize. Two stage Filtration Equipped with H14 HEPA filter (with optional grill) Washable type F7 pre-filter Compact Design The entire unit is designed in very less area Feather Touch Switches For easy operation of the unit Pressure Gauge with alarm Indicates filter life and raises alarm when choked User Friendly Control System Operable with a single click via LCD display on both sides Energy Efficient LED Lights 500 Lux illumination for clear visibility UV Light with Hour Meter Kills germs and bacteria; life indicator assists with timely replacements Doors Two Way / Three Way Doors with Glass view windows Mechanical / Electromagnetic interlocking system EC motors – Ensure quiet operation and energy efficiency. Dynamic Pass Box Applications: Pharmaceutical Manufacturing – Safe transfer between non-classified and classified rooms. Biotechnology Labs – Handling of samples, instruments, and consumables. Consumer Electronics – Contamination free movement of products from one operation centre to other. Hospital Isolation Wards – Prevents microbial entry during item movement. Semiconductor & Electronics Cleanrooms – Ensures zero-particle transfer. Food & Nutraceutical Processing – Hygienic transfer of raw materials and tools.

Air Cleanliness Class 100
Velocity 90 FPM ± 20%
Material of Construction SS 304 (Optional: SS 316)
Main Filter Minipleat HEPA, Class: H14
Pre Filter Pre Filter, Class: F7
Filter Efficiency HEPA 99.997% at 0.3 µm Pre Filter 90% at 5 µm
Noise (dB) 67 ± 2
Lighting (Lux) >500
